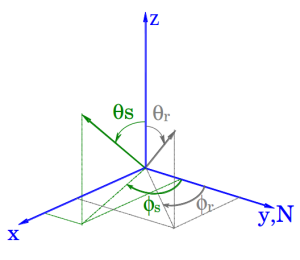

Angle conventions, N is the North direction, in the text, we used the v subscript for viewing angles instead of r subscript).
a cold and passive surface does not emit light in the solar spectrum (or only negligibly), and only reflects some part of the incoming light. The ratio between the incoming light flux and the outgoing flux in all directions is known as the albedo, and it cannot be greater than one (see this post for a definition of fluxes, irradiance, radiance, and reflectance). But reflectance and albedo are not the same thing.
where L is the radiance, Es is the sun irradiance and \(\theta_s\) is the solar zenith angle, $ latex \phi_s$ is the sun azimuth angle, \(\theta_v\) is the viewing zenith angle, and \(\phi_v\) is the viewing azimuth angle.
The black sky albedo BSA, (or directional Hemispherical reflectance (DHR) is the ratio of incoming and outgoing light for a point source, such as the sun, with no atmosphere. The BSA is the integral of the reflectance in all directions (weighted by the cosine of the viewing angle, because we only account for the surface which is perpendicular to the observation direction, and by the sinus of viewing angle, as we integrate along crowns on the hemisphere).
Of course the total irradiance reflected by a surface in all directions is lower than the incoming sun irradiance, which means that the albedo is lower than one. Suppose you have a perfect lambertian surface, that scatters all the incoming light in a uniform way in all the upward directions (imagine a perfect white paper sheet). For such a surface, the reflectance is equal to one in all directions, and the albedo, is equal to the reflectance.
Now imagine a perfect mirror, which also reflects all the incoming light, but only in the specular direction. In that case, the reflectance is not at all constant. It is null in all directions, except in a little cone that corresponds to the solid angle of the sun. The albedo is still one, but the reflectance in the specular cone is much greater than one :
Where \(\omega_s\) is the sun solid angle (and \(2.\pi\)) is the hemispherical solid angle.
As \(\omega_s=6.8 \times 10^{-5}\), we get a reflectance of about \(10^{5}\) for a perfect mirror, which is much greater than one. In practice, we have atmospheric effects, imperfect mirrors, and detectors that saturate, so we do not observe such high reflectances wth our satellites, but we can still find reflectances greater than 1.
Usual cases of observations of reflectances greater than one :
Specular reflections
For instance, a window roof that reflects the sun right right to the satellite camera, can have a reflectance much higher than one. It is the case for the images below, for which a user wrongly complained that our products were providing maximum surface reflectance values greater than 2, and therefore were completely bugged (which is not the case, or not completely the case 😉 )

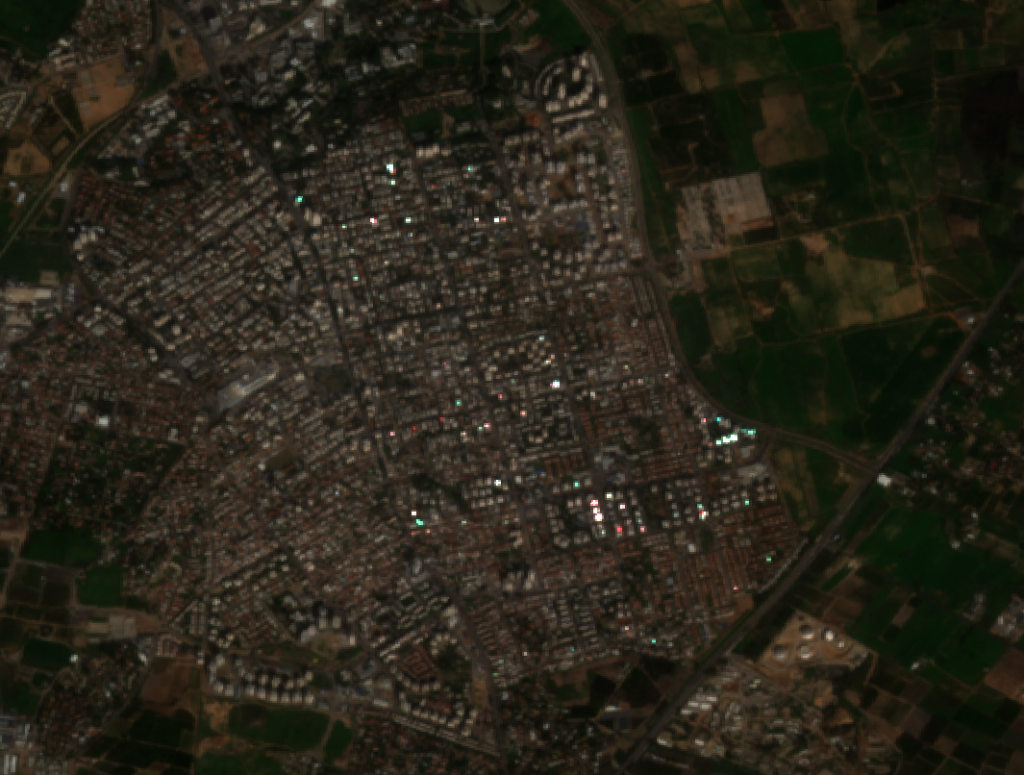

Example of reflectances greater than one observed over roof windows in a VENµS image
Slope effect on snow mountains
Definition of sun zenith angle and sun incidence angle
Another phenomenon contributes to observing reflectances larger than one :
A snow covered pixel in a mountain facing the sun can also reach values above one. This effect is due to the fact that reflectance is normalized by the cosine of sun zenith angle (angle between sun
direction and vertical). But in the case of a slope, it should be in fact normalized by the cosine of the incidence angle, which is the angle between sun direction and the normal direction to the slope. Sen2cor and MACCS have a “terrain correction” to correct for this effect.
Slope effect on clouds
Thick clouds can also have very high reflectances, and the same effect as for mountains can be observed for slopes in the cloud surface that face the sun. But we are not able to correct it as it would mean having an elevation model of the cloud.
Schaepman-Strub, G., Schaepman, M. E., Painter, T. H., Dangel, S., & Martonchik, J. V. (2006). Reflectance quantities in optical remote sensing—Definitions and case studies. Remote sensing of environment, 103(1), 27-42.
Nous utilisons des cookies pour vous garantir la meilleure expérience sur notre site web. Si vous continuez à utiliser ce site, nous supposerons que vous en êtes satisfait.OK
[How it works] Can reflectances be greater than 1 ?
Olivier Hagolle, 3 septembre 2019
Beware, this document contains equations
Having written a lot of posts in this blog, twitter or linkedIn, or due to the distribution of products and softwares on Theia or Github, Users of these channels questions per week in one of these channels, which I try to answer, even if not always at once.
Many questions are about reflectance values, such as:
But the fact that reflectances should be lower than one is a common belief which is… false !
Photometry
Let’s go back to physics :
a cold and passive surface does not emit light in the solar spectrum (or only negligibly), and only reflects some part of the incoming light. The ratio between the incoming light flux and the outgoing flux in all directions is known as the albedo, and it cannot be greater than one (see this post for a definition of fluxes, irradiance, radiance, and reflectance). But reflectance and albedo are not the same thing.
The Bidirectional reflectance is defined as :
$$\rho(\theta_{s},\phi_{s},\theta_{v},\phi_{v}) =\frac{\pi.L(\theta_{s},\phi_{s},\theta_{v},\phi_{v})}{Es.cos(\theta_{s})}$$
where L is the radiance, Es is the sun irradiance and \(\theta_s\) is the solar zenith angle, $ latex \phi_s$ is the sun azimuth angle, \(\theta_v\) is the viewing zenith angle, and \(\phi_v\) is the viewing azimuth angle.
The black sky albedo BSA, (or directional Hemispherical reflectance (DHR) is the ratio of incoming and outgoing light for a point source, such as the sun, with no atmosphere. The BSA is the integral of the reflectance in all directions (weighted by the cosine of the viewing angle, because we only account for the surface which is perpendicular to the observation direction, and by the sinus of viewing angle, as we integrate along crowns on the hemisphere).
$$BSA(\theta_{s},\phi_{s})=\int_{0}^{\pi/2} \int_{0}^{2. \pi} rho(\theta_{s},\phi_{s},\theta_{v},\phi_{v}) cos(\theta_v).sin(\theta_v)d\theta_v d\phi_v$$

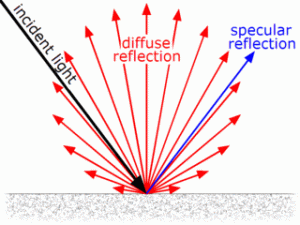

Of course the total irradiance reflected by a surface in all directions is lower than the incoming sun irradiance, which means that the albedo is lower than one. Suppose you have a perfect lambertian surface, that scatters all the incoming light in a uniform way in all the upward directions (imagine a perfect white paper sheet). For such a surface, the reflectance is equal to one in all directions, and the albedo, is equal to the reflectance.
Now imagine a perfect mirror, which also reflects all the incoming light, but only in the specular direction. In that case, the reflectance is not at all constant. It is null in all directions, except in a little cone that corresponds to the solid angle of the sun. The albedo is still one, but the reflectance in the specular cone is much greater than one :
$$\rho(\theta_{s},\phi_{s},\theta_{s},\phi_{s}+\pi) = \frac{2.\pi}{\omega_s}$$
Where \(\omega_s\) is the sun solid angle (and \(2.\pi\)) is the hemispherical solid angle.
As \(\omega_s=6.8 \times 10^{-5}\), we get a reflectance of about \(10^{5}\) for a perfect mirror, which is much greater than one. In practice, we have atmospheric effects, imperfect mirrors, and detectors that saturate, so we do not observe such high reflectances wth our satellites, but we can still find reflectances greater than 1.
Usual cases of observations of reflectances greater than one :
Specular reflections
For instance, a window roof that reflects the sun right right to the satellite camera, can have a reflectance much higher than one. It is the case for the images below, for which a user wrongly complained that our products were providing maximum surface reflectance values greater than 2, and therefore were completely bugged (which is not the case, or not completely the case 😉 )

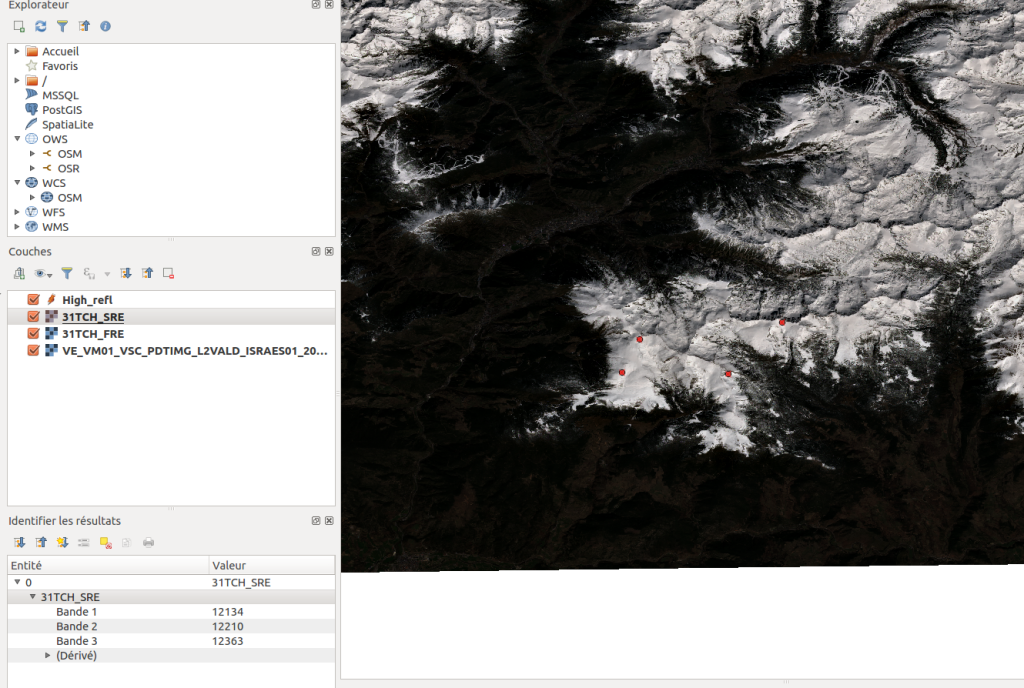

Slope effect on snow mountains
Another phenomenon contributes to observing reflectances larger than one :
A snow covered pixel in a mountain facing the sun can also reach values above one. This effect is due to the fact that reflectance is normalized by the cosine of sun zenith angle (angle between sun
direction and vertical). But in the case of a slope, it should be in fact normalized by the cosine of the incidence angle, which is the angle between sun direction and the normal direction to the slope. Sen2cor and MACCS have a “terrain correction” to correct for this effect.
Slope effect on clouds
Thick clouds can also have very high reflectances, and the same effect as for mountains can be observed for slopes in the cloud surface that face the sun. But we are not able to correct it as it would mean having an elevation model of the cloud.
References:
Nicodemus, F.E.; J.C. Richmond; J.J. Hsia (October 1977). « Geometrical Considerations and Nomenclature for Reflectance » (PDF). NATIONAL BUREAU OF STANDARDS. Retrieved 8 April 2013.
Schaepman-Strub, G., Schaepman, M. E., Painter, T. H., Dangel, S., & Martonchik, J. V. (2006). Reflectance quantities in optical remote sensing—Definitions and case studies. Remote sensing of environment, 103(1), 27-42.
